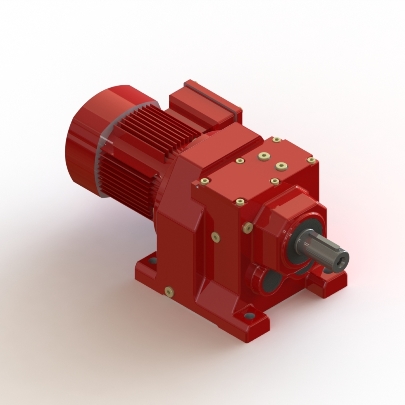

Helical Gear Reducer R Series

Excellent ratio of performance and space requirements, its parts are modular design, can connect R series reducer with AC motor, or connect with servo motor.

Advantages
• Comprehensive product 6 models of single-stage reducers and 14 models of 2-stage and 3-stage reducers provide fine classification of torque value and transmission ratio, rated torque from 50 Nm to 18 000 Nm,

Sizes
Single stage: R51 to R101
2nd/3rd stage: R..37 to R..187

Installation method - foot mounted or flange installation

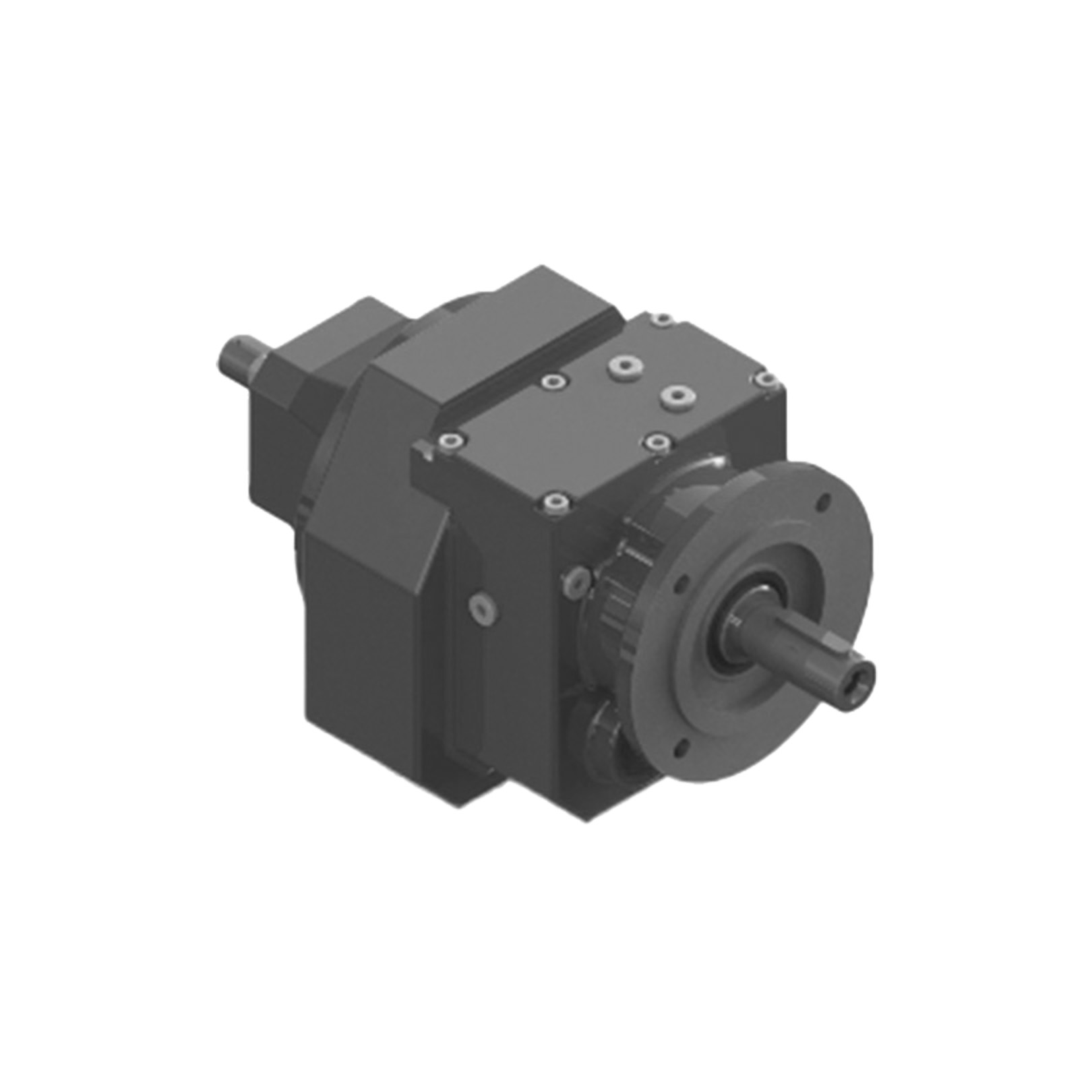

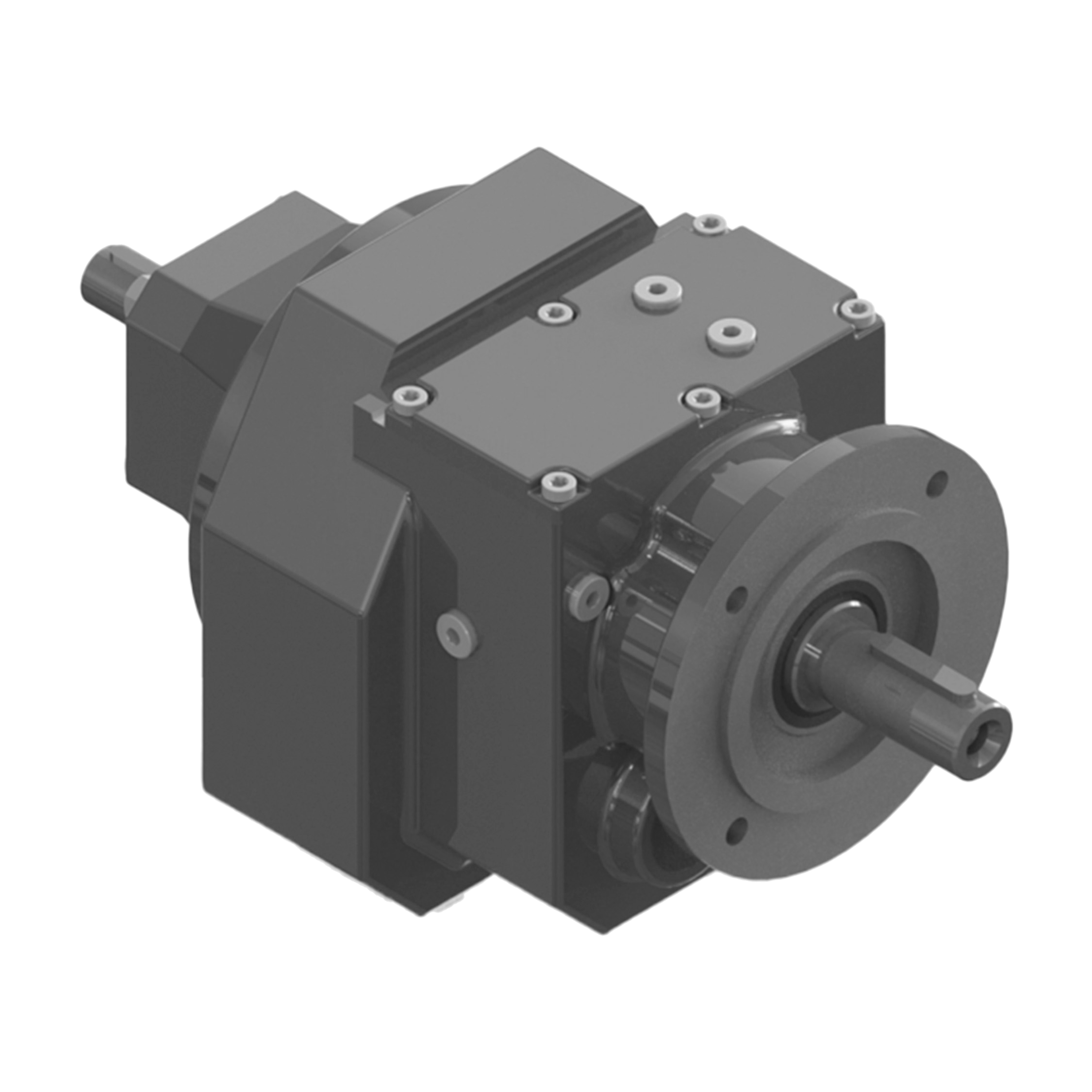

-B5 or B14 flange mounting
-Solid shaft or hollow shaft
-Hollow shaft with keyway connection, shrink disk, splined hollow shaft
