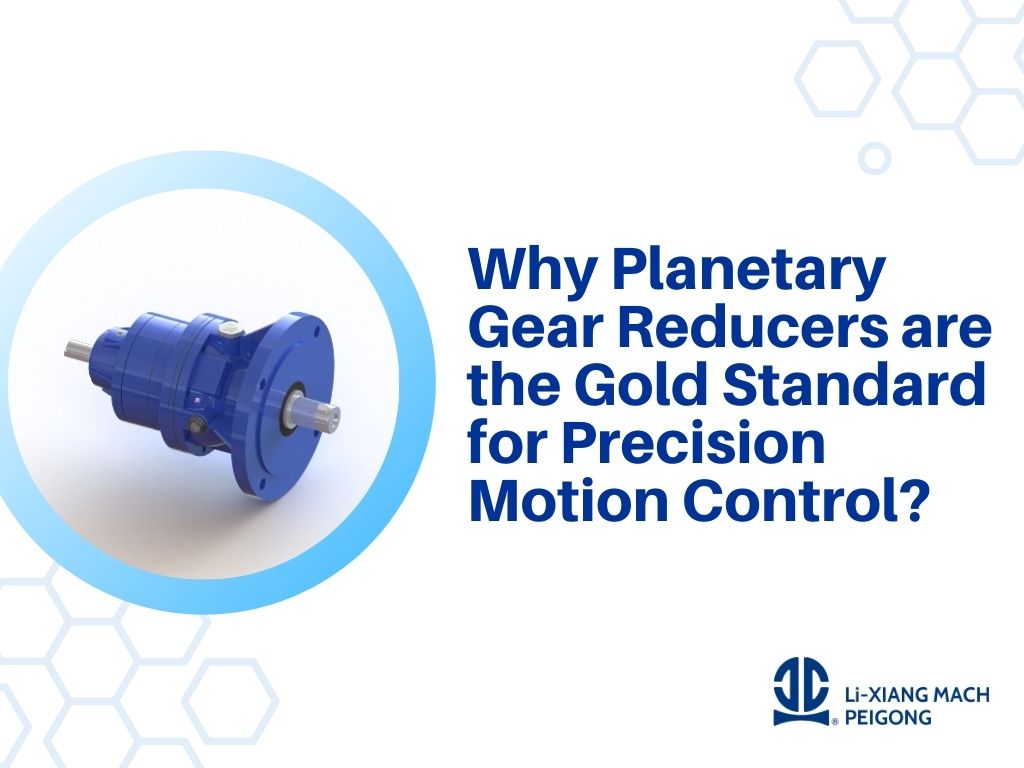

Why Planetary Gear Reducers are the Gold Standard for Precision Motion Control
In the sophisticated landscape of modern industrial automation, the demand for precision, efficiency, and power density has never been higher. As machines become faster and more compact, the components that drive them must evolve to meet rigorous mechanical standards. Among the various technologies available for speed reduction and torque multiplication, the planetary gear reducer stands as the definitive "gold standard."
This article provides an objective technical analysis of the mechanical advantages of planetary systems and explains why they are the preferred choice for high-end motion control across global industries.
1. The Geometry of Power: Understanding the Planetary Arrangement
The term "planetary" refers to the way the gears move together, mimicking the orbits of a solar system. The architecture consists of three primary components:
- The Sun Gear: Located at the center, typically attached to the input shaft (the motor).
- The Planet Gears: Multiple gears that revolve around the sun gear while meshing with an outer ring.
- The Ring Gear (Annulus): A stationary outer gear with internal teeth that encapsulates the system.
Unlike traditional spur or worm gearboxes, where the load is transferred through a single point of contact between two teeth, a planetary reducer distributes the input load across multiple planet gears.
The Advantage of Load Sharing
By distributing the torque over N number of planet gears (usually three to five), the stress on each individual tooth is reduced to 1/N. This mathematical distribution allows the gearbox to handle significantly higher torque loads without increasing the physical size of the unit. This leads to what engineers call high torque density—the ability to provide massive power in a compact footprint.
2. Efficiency and Energy Conservation
In any mechanical system, energy loss is a primary concern. Most energy in a gearbox is lost through friction, which generates heat and causes wear.
- Rolling vs. Sliding: Planetary gears primarily utilize rolling contact. In contrast, worm gears rely on a sliding action between the screw and the gear, which generates significant friction.
- High Transmission Efficiency: Because of the precision-ground teeth and the balanced internal forces, planetary reducers typically achieve an efficiency rating of 95% to 97% per stage.
- Thermal Stability: Because less energy is lost as heat, the internal components are subjected to less thermal stress. This stability ensures that the lubricant maintains its viscosity and protective properties over a much longer service life.
3. Torsional Stiffness and Positioning Accuracy
For applications such as robotic arm articulation or CNC tool positioning, "backlash" is a critical failure point. Backlash is the clearance or "play" between mating teeth that occurs when the direction of rotation is reversed.
Planetary reducers are inherently more rigid than other gear types. The symmetrical design ensures that the radial forces cancel each other out, leading to high torsional stiffness. This means that when the motor moves, the output shaft responds with near-instantaneous precision. In high-frequency start-stop cycles, this rigidity prevents "ringing" or oscillation, allowing the system to settle faster and improve overall cycle times in a production line.
4. Coaxial Alignment: Simplifying Machine Design
One of the most practical advantages of the planetary gear reducer is its coaxial (in-line) configuration. The input shaft and the output shaft share the same longitudinal axis.
- Symmetrical Balance: This alignment allows for a balanced distribution of mass, which is critical for high-speed rotations where centrifugal forces could otherwise cause vibration.
- Design Integration: Engineers can mount the motor and gearbox in a straight line, simplifying the machine’s frame and reducing the complexity of the assembly. This is a stark contrast to right-angle gearboxes, which require more space and complex mounting brackets.
5. Durability and Resistance to Impact Loads
Industrial environments are rarely perfect. Machines often face sudden "shock loads"—instantaneous spikes in torque caused by emergency stops, collisions, or material jams.
Because a planetary gear reducer has multiple teeth in mesh at any given time, it possesses a much higher resistance to these impacts. In a standard spur gear, a shock load might shear a single tooth and catastrophic failure would occur. In a planetary system, the impact is absorbed across the 360-degree surface of the ring gear and multiple planet teeth, providing a robust safety margin that ensures the machine survives unexpected stress.
6. Comprehensive Solutions: PEI GONG Planetary Gear Reducers
Building upon these engineering principles, LI-XIANG MACH. & ELEC. CO., LTD. has refined the planetary architecture through the PEI GONG brand. Established in 1976, PEI GONG has become a benchmark for quality in the Taiwan domestic market and an essential partner for international B2B clients.
Product Series and Technical Specifications
LI-XIANG offers a diverse range of planetary solutions designed to meet specific industrial needs:
- PM and PS Series: Designed for high-performance servo applications where precision and durability are non-negotiable.
- FM and FS Series: Offer versatile mounting options and output configurations, making them easy to integrate into existing mechanical systems.
Why Choose PEI GONG?
- 100% Made in Taiwan (MIT): Every component undergoes rigorous Quality Control (QC) in our own facilities. We focus on "delicacy and precision" rather than mass-produced generic units.
- Certified Reliability: Our manufacturing processes are ISO 9001/2008 certified, and our products carry CE, UL, and TUV certifications. This ensures that our reducers meet the strict safety and performance standards required in European and North American markets.
- One-Stop Solution Provider: We don’t just sell hardware; we provide professional technical support. Our team helps customers match the right reducer to their specific motor and application, ensuring optimal performance from day one.
- Quiet Operation: Through advanced grinding techniques and high-precision planetary plates, our gearboxes operate at low decibel levels, contributing to a better working environment.
Conclusion
The planetary gear reducer is more than just a component; it is a vital enabler of modern precision. By offering the best balance of torque density, efficiency, and accuracy, it remains the gold standard for engineers worldwide.
LI-XIANG MACH. & ELEC. continues to push the boundaries of this technology under the PEI GONG brand. By combining decades of expertise with a commitment to quality over quantity, we provide the drive systems that power the world’s most precise machines.
